HILFE Motorsensorverkabelung

[error]

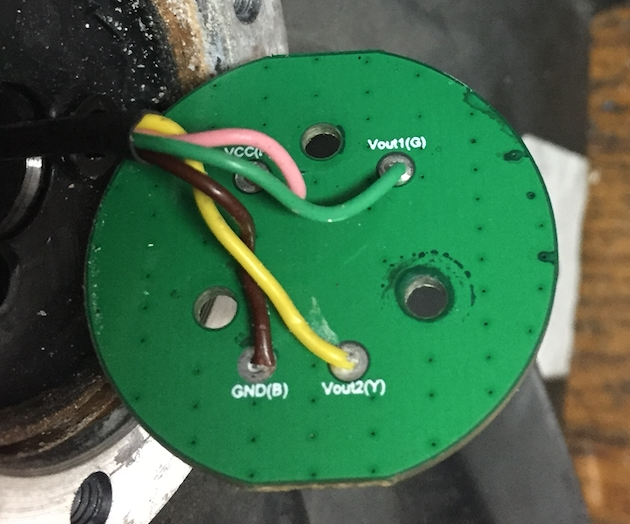

Evtl. sind auf der Platine (Rückseite?) die Anschlüsse beschriftet? Beim Sevcon-Encoder ist das der Fall, siehe Bild. Dann ließen sich die Adern evtl. mit Hilfe der Anschlussbelegung am Votol die Adern zuordnen.

Nein, leider nicht. Ich hatte schon in meiner Fotosammlung nachgesehen: das ist ein anderer Encoder in der Votol Silence.

[Peter51]

Gehe doch auf den Votol Schaltplan. Motorsignalleitungen sind mit 1 bis 7 beschriftet....

[patba]

Nein, leider nicht. Ich hatte schon in meiner Fotosammlung nachgesehen: das ist ein anderer Encoder in der Votol Silence.

Jetzt wo man die Rückseite sieht, wird es mir erst wieder klar, ich hatte die nicht mehr genau in Erinnerung. Da stehen ja sogar die Farben dabei!

Erstaunlich ist aber, dass der Votol-Encoder wesentlich aufwendiger bestückt ist. Ob das wirklich nur ein reiner sin/cos Encoder ist?

[Pfriemler]

This topic is real sh..t. I've never seen that before and I have no information about that.
I may confirm that the circuits in the linked service manual are the most actual one I have, esp. the powertrain section. But the pin numbers there do not help with 7 pins on a 8 ppin connector.

Der Votol arbeitet mit Hallsensoren:
rot +5V
schwarz ground
yellow Hall
green Hall
blue Hall
weiß Temperatur

Looking on the first pic in this thread: regard "red" as a kind of pink or "pig red". A better pic of both sides of the PCB could help to identify +5V, GND and the temp sensor lines (I think the extra 2pin cable is it and there's only a connection on the PCB.) The remaining three pins must be the hall sensor lines, but this is only half the truth: there's - as far as I understand - only one of six combination which will work.

We need a pic. VOTOLs with hall do not have the extra plate on the axis secured with three screws.

[patba]

Gehe doch auf den Votol Schaltplan. Motorsignalleitungen sind mit 1 bis 7 beschriftet....

Der von Gerold gepostete Schaltplan ist aber für die Variante mit Hallsensoren. Die haben dann keinen aufschraubbaren Deckel auf der Nabe.
Oder gibt es auch Motoren, bei denen die Hallsensoren an der Nabe sitzen, so aufwendig wie hier beschaltet sind, und durch einen separaten Magneten bedient werden?

[nobby8]

E-mail: info@qs-motor.com
I would send the Foto to QS- Motor. I think the Motor is from them. I have a question too: The Motor ist open. How long are the Magnetics? 45mm?

hello Peter, there are 32x magnets and they are 27.50mm in length

[nobby8]

This topic is real sh..t. I've never seen that before and I have no information about that.
I may confirm that the circuits in the linked service manual are the most actual one I have, esp. the powertrain section. But the pin numbers there do not help with 7 pins on a 8 ppin connector.

Der Votol arbeitet mit Hallsensoren:
rot +5V
schwarz ground
yellow Hall
green Hall
blue Hall
weiß Temperatur

Looking on the first pic in this thread: regard "red" as a kind of pink or "pig red". A better pic of both sides of the PCB could help to identify +5V, GND and the temp sensor lines (I think the extra 2pin cable is it and there's only a connection on the PCB.) The remaining three pins must be the hall sensor lines, but this is only half the truth: there's - as far as I understand - only one of six combination which will work.

We need a pic. VOTOLs with hall do not have the extra plate on the axis secured with three screws.

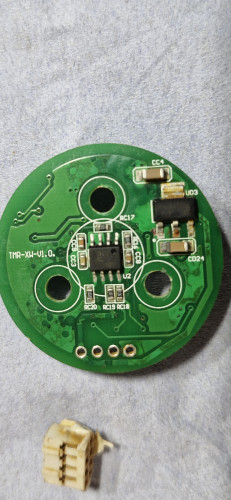

I will take more photos today of both sides of the sensor board. The bike was sold new in the UK and is fitted with a Votol 150/2 controller to a telemetry developer who were working for the importer. It got wet in flood, the battery is ruined but I hoped to salvage the rest of the bike

[nobby8]

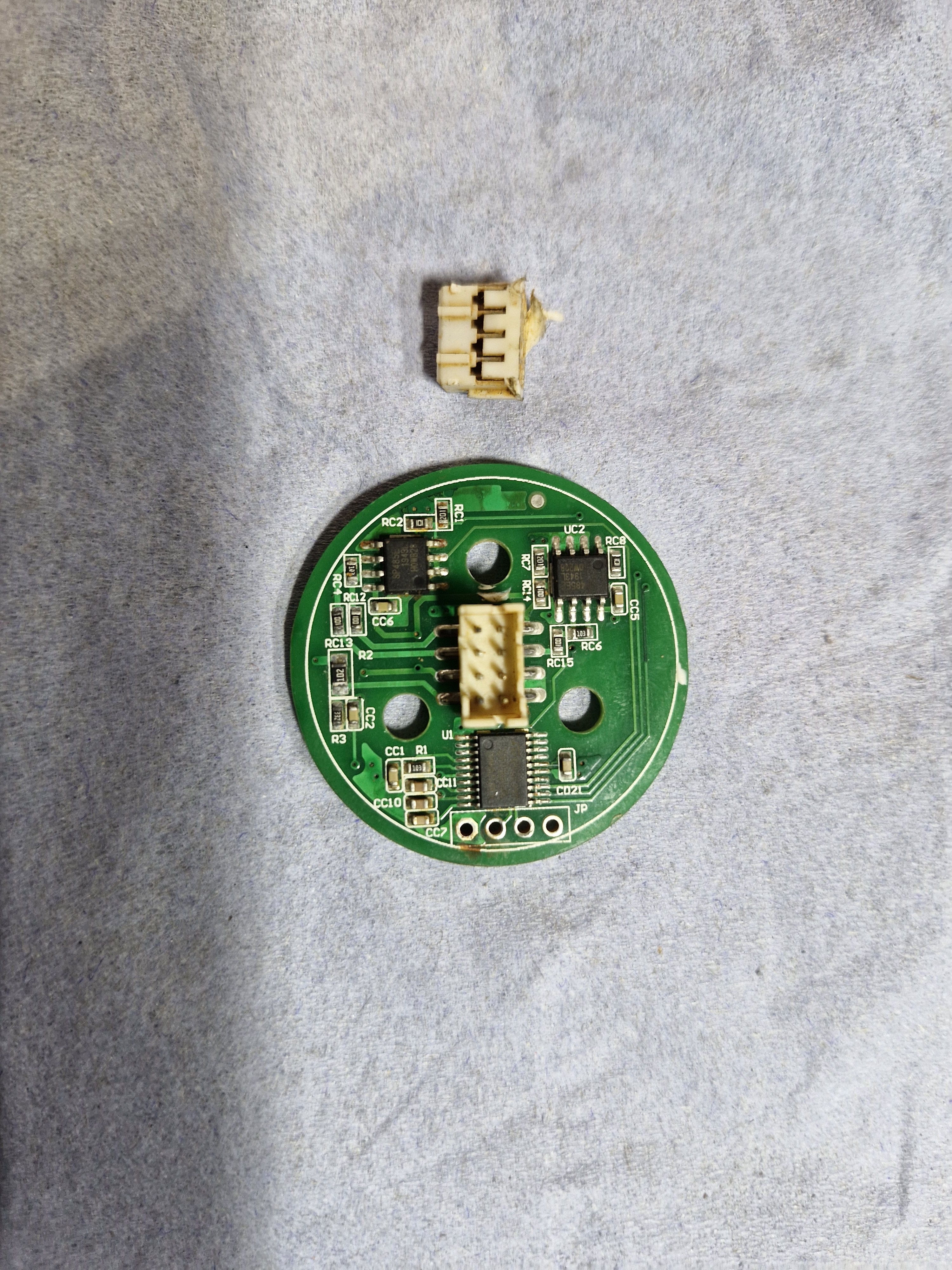

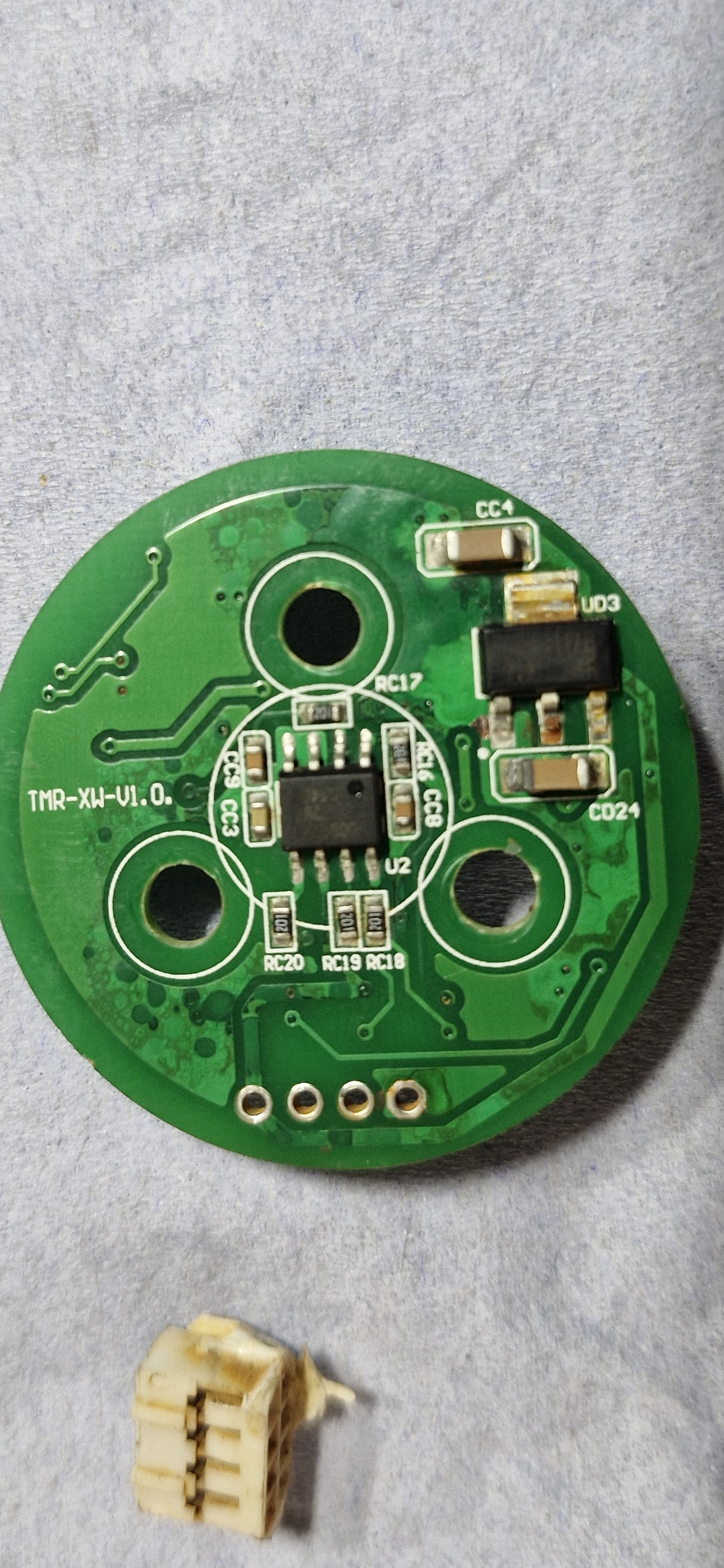

here are two more pictures I took today

Pfriemler yes PV was his name. I tried to PM you but it seems to be stuck in the outbox

[nobby8]

here is also a link to the same part in Spain labelled V3 controller
https://www.milanuncios.com/otros-motor ... 335517.htm

[error]

Can you read the markings on the decoder chip? This this one is able to work in hallsensor mode (HSM).

https://www.infineon.com/dgdl/Infineon- ... 31c43c433f

May be we can work out the pinout with the datasheets of the chips on the pcb?
